14  Other Types of Plots

In addition to the most common plots we’ve covered so far, many specialized plot types can be extremely useful depending on your research focus. While these plots may not be applicable to every project, they offer powerful ways to visualize complex data in specific fields.

14.1 Network plots

Networks are increasingly common. For example, ecological networks. With the power of the tidygraph package to structure your data and ggraph to render it beautifully, you can create visualizations that are both informative and striking. For a look at what’s possible, check out these impressive examples here.

14.2 Phylogenetic trees

For researchers in evolutionary biology, phylogenetic trees are essential for illustrating evolutionary relationships. The ggtree package simplifies the process of creating detailed and informative trees. To see examples and learn more about its capabilities, visit here.

14.3 Spatial data

Spatial data visualization allows you to create maps and geospatial plots, providing visually compelling representations of data tied to geographic locations. This tutorial introduces the basics of creating maps using ggplot2 and the sf package. While spatial data analysis is a vast topic, hopefully this guide provides a foundation for getting started.

14.3.1 Getting Started: Essential Packages

We’ll use a new package sf, a modern package for handling spatial data in R. It represents geographic features (like points, lines, and polygons) in a way that ggplot2 understands.

library(tidyverse)
library(sf)
library(maps)

1

Deal with spatial data

2

Load the data pakage

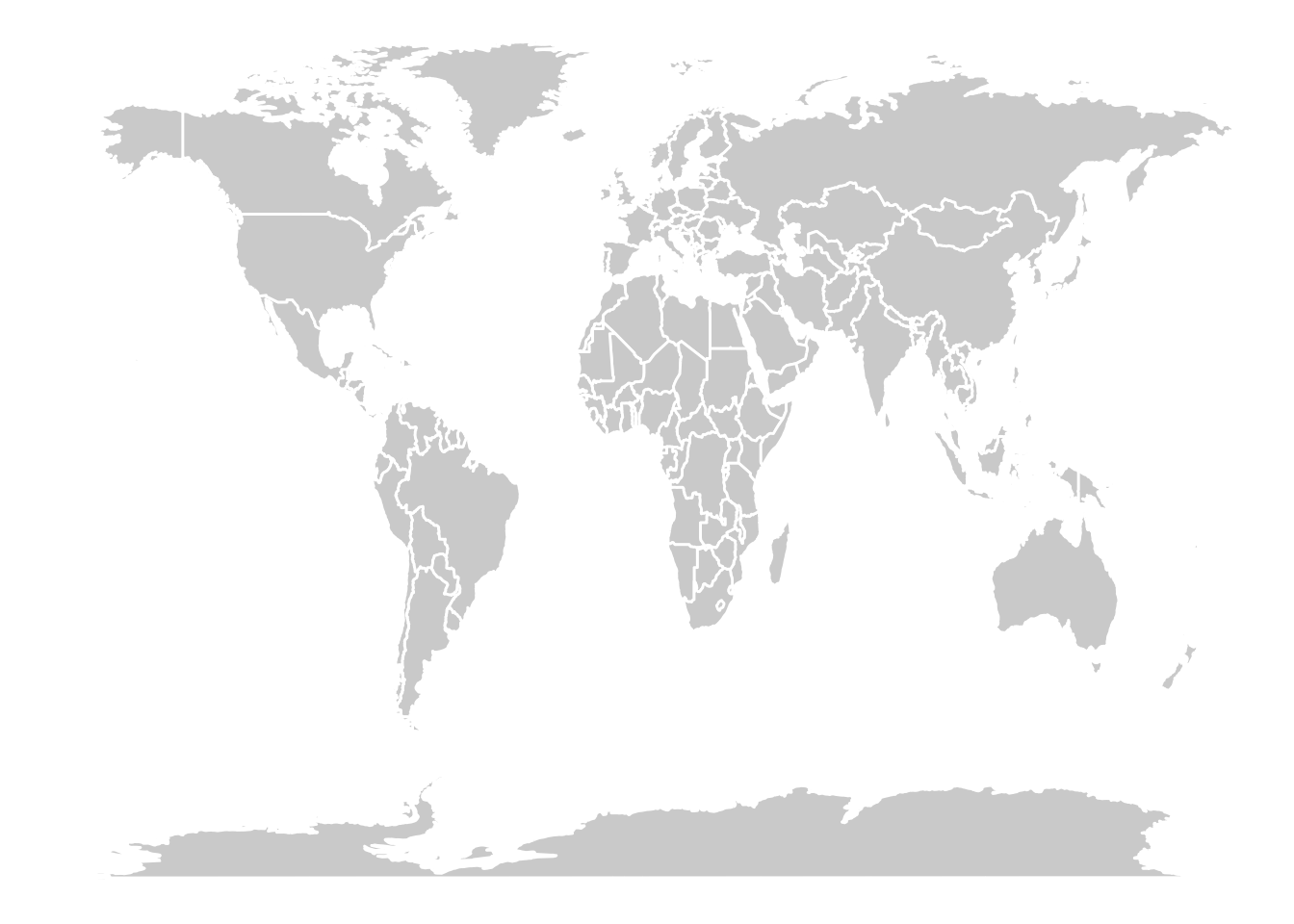

Let’s start by creating a simple world map.

world_map <- map_data("world")

ggplot(world_map, aes(x = long, y = lat, group = group)) +
    geom_polygon(fill = "lightgray", colour = "white") +
    theme_void()

1

Load Map Data: The maps package provides pre-built map data. We’ll use map_data(“world”) to get a data frame representing the world’s countries.

2

Use longitude and latitude to plot the map

3

Plot with geom_polygon: ggplot2’s geom_polygon is used to draw shapes, which in this case are the country outlines. We need to tell it how the points are connected to form the polygons using the group aesthetic.

4

Clean Up with theme_void: theme_void() removes axis lines, labels, and the background, giving us a clean map.

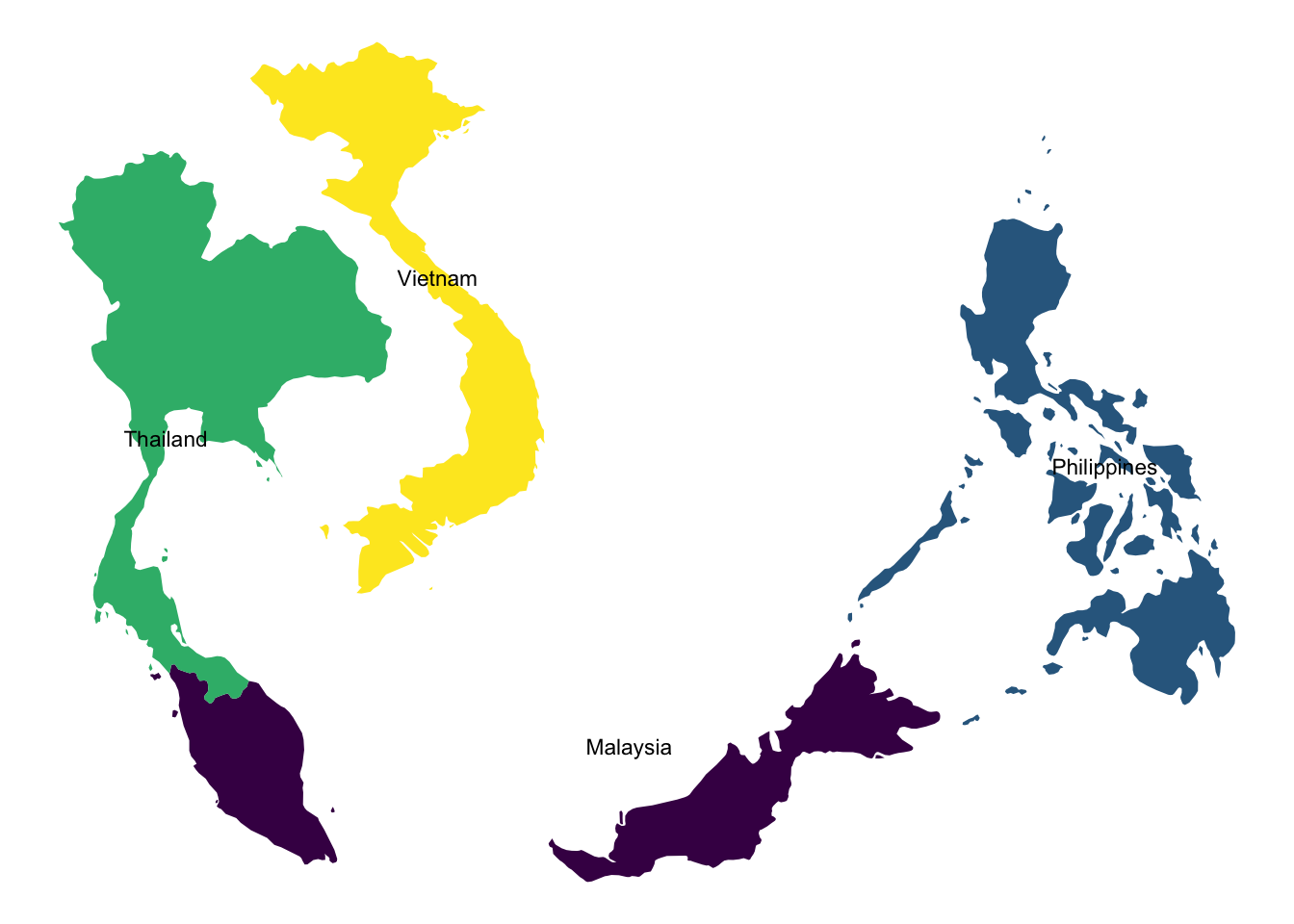

We can easily create maps of specific regions by filtering the world map data.

# Retrieve the map data for some asian countries
some_asia_maps <- map_data("world", region = c(
  "Malaysia",
  "Philippines",
  "Thailand",
  "Vietnam"
))

# Calculate the center of each country for labels
asia_lab_data <- some_asia_maps %>%
  group_by(region) %>%
  summarise(long = mean(long), lat = mean(lat))

# Plot the map
ggplot(some_asia_maps, aes(x = long, y = lat)) +
  geom_polygon(aes( group = group, fill = region))+
  ggrepel::geom_text_repel(aes(label = region), data = asia_lab_data,  size = 3)+
  scale_fill_viridis_d()+
  theme_void()+
  theme(legend.position = "none")

14.3.2 Mapping Data onto a Map

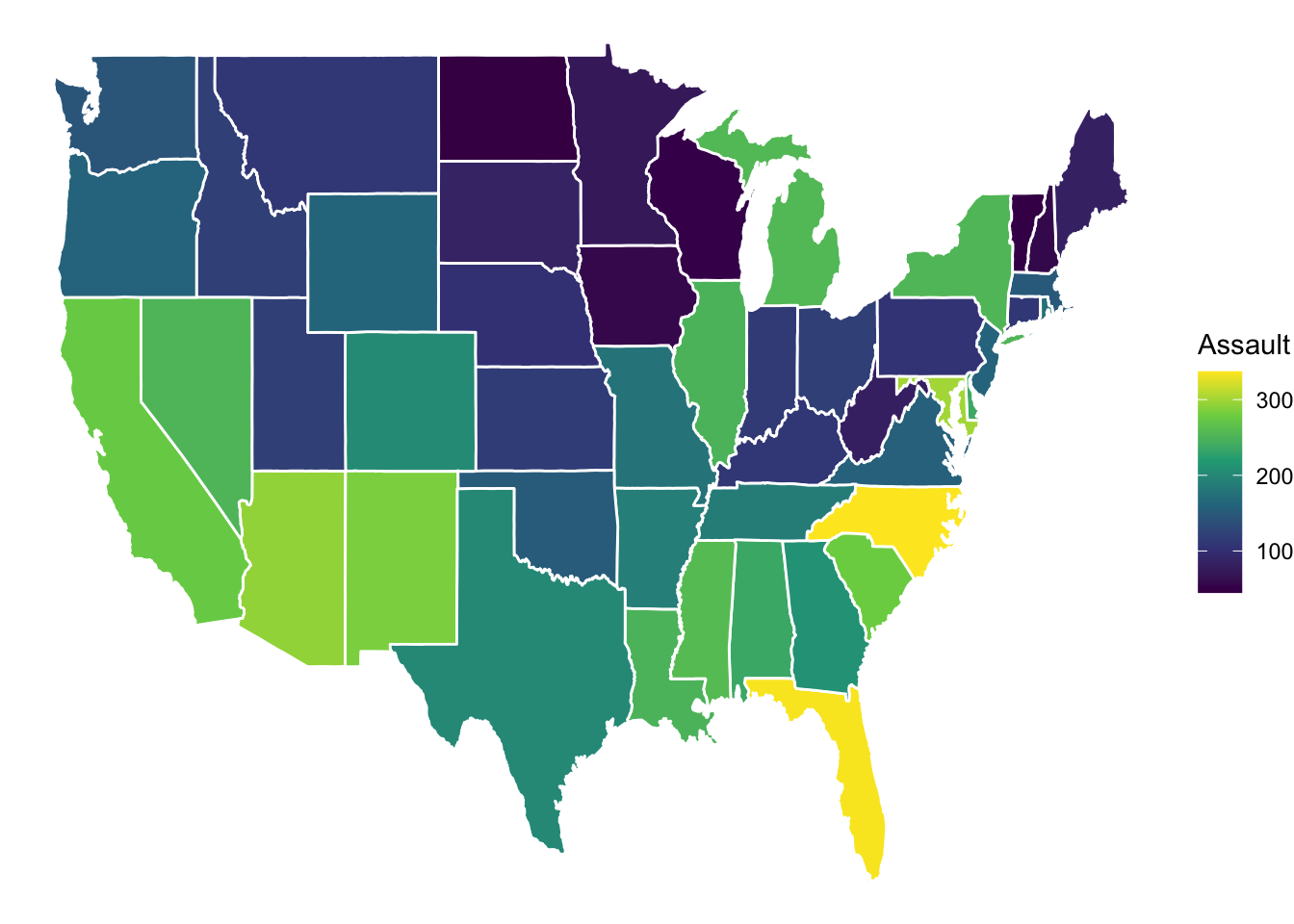

Now, let’s combine a map with external data. We’ll use the USArrests dataset and visualize assault rates across US states.

arrests_map <- USArrests  |>
    as_tibble(rownames = "state")  |>
    mutate(region = tolower(state))  |>
    right_join(map_data("state"), by = "region")

arrests_map  |>
    ggplot(aes(long, lat, group = group))+
    geom_polygon(aes(fill = Assault), color = "white")+
    scale_fill_viridis_c(option = "D")+
    theme_void()

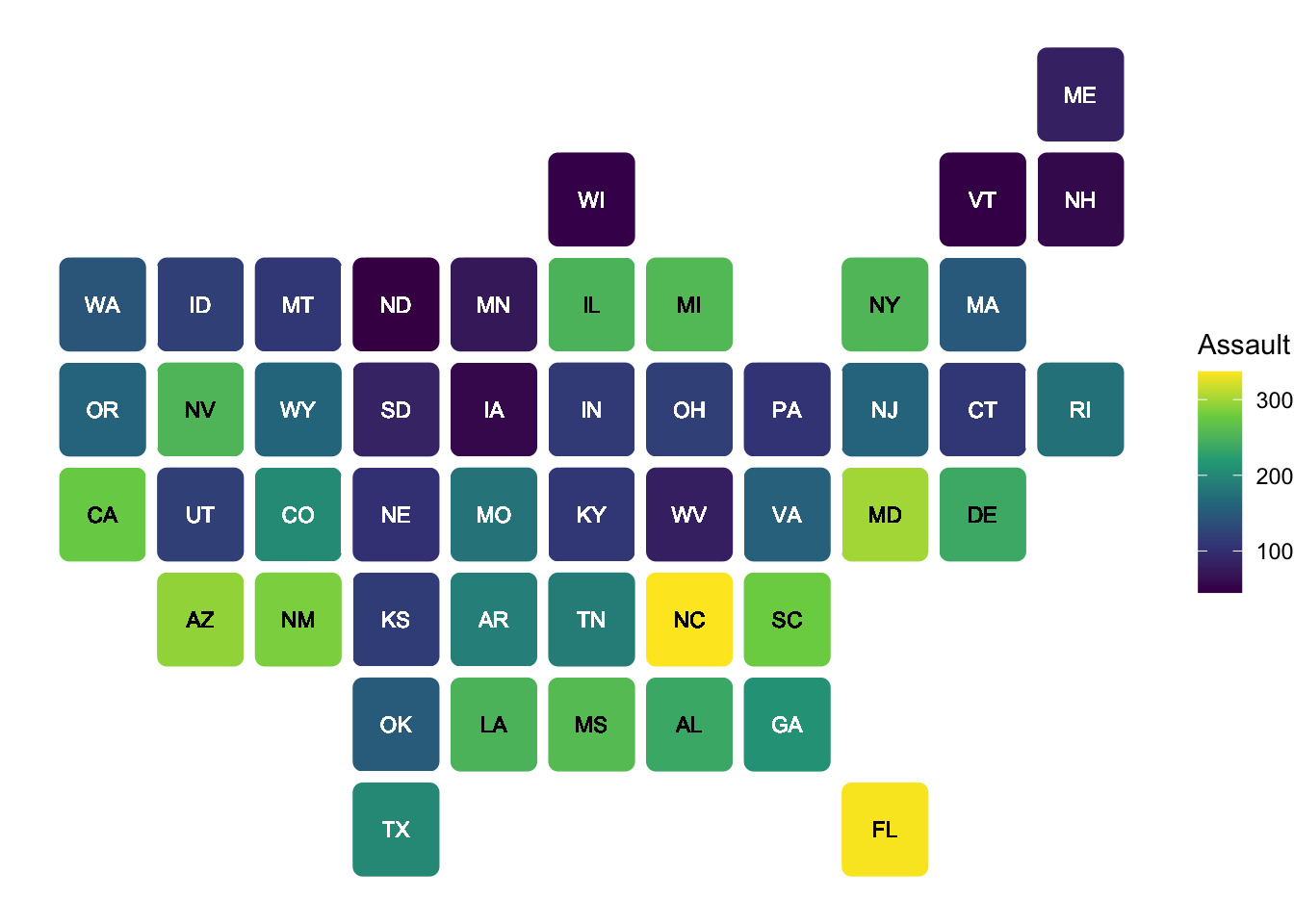

Importantly, it does not always not to be geogropahically accurate. We can use statebins package to make a useful visualization.

library(statebins)

arrests_map |>
    drop_na(state) |>
    ggplot(aes(state = state, fill = Assault))+
    geom_statebins(color = "white")+
    scale_fill_viridis_c(option = "D")+
    theme_void()

14.3.3 Further Exploration

If you want to learn more about mapping, here are some useful packages:

• ggmap: For integrating with Google Maps and other map services. See the ggmap tutorial for details. This allows you to use map tiles from various providers as your base map.
• ggspatial: Provides tools for adding annotations like scale bars and north arrows to your maps.

Additionally, you can learn a lot from well-documented examples. Check out the following website for some outstanding examples with codes here.
